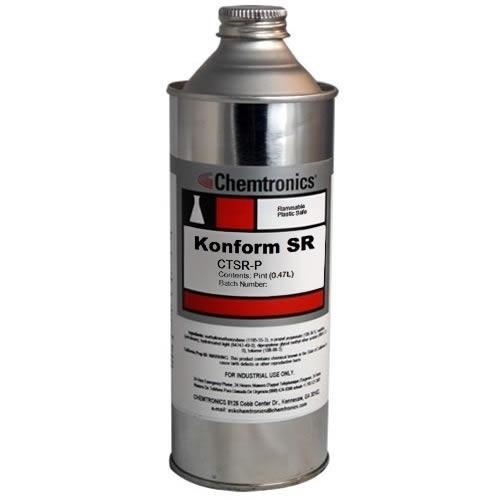

Chemtronics CTSR-P

Konform® SR Silicone Conformal Coating 1 pint

Minimum order quantity is 2

Must order in multiples of 2

Add to List

Konform® SR Silicone Conformal Coating, Standard Viscosity (40± 5 cps), 1 Pint

Konform® SR provides maximum flexibility for extreme temperatures. This transparent conformal coating provides ideal protection for both rigid and flexible printed circuit boards. Cured coatings are hydrolytically stable and retain their physical electrical properties after high temperature and humidity exposure. Konform® SR will not stress delicate circuit components.

Features & Benefits
• Engineered for applications where flexibility and high temperature resistance are required
• Silicone coating stable from -85°F/-64°C to 390°F/199°C
• High dielectric strength of 1100 volts/mil
• Easily removed with Electro-Wash® Two Step or CircuitWorks® Conformal Coating Remover Pen
• Meets MIL-I-46058C, Type SR
• Compliant to IPC-CC-830A
• RoHS Compliant
• UL Recognized, File E76307
• UL 94 V-0
• Contains a UV indicator for Quality Control inspection using medium intensity light at 265-335 nm

Applications
• Extends component life by protecting against adverse environments
• Good insulation properties, excellent flexibility
• Resists moisture, salt, fungus, corrosive vapors, and severe environments
• Engineered to withstand heat generated by electronic circuitry as well as climatic temperatures
